Solar Carports

Stilosol

Designed for large-scale installations of 20 spaces or more, the Stilosol is able to cover large car parks quickly and cost-effectively.

With flexible post placement and fast installation, Stilosol is manufactured in Europe by Bluetop Solar Parking for a wide range of applications.

Cost-Effective Design

With it's simple design and fast installation, Stilosol is a cost-effective solution for covering large areas with solar panels. Thanks to the modular design it can be extended to unlimited lengths.

Single Support

Supported from one row of central posts, the Stilosol is cantilevered by up to 6m on each side to reduce the number of foundations required.

European-Made

Designed and manufactured in Europe, Stilosol complies with stringent European quality standards, while keeping transport emissions lower.

Integrated Waterproofing

We offer waterproofing as standard, using a steel box profile roof or the unique Nexus waterproofing system.

Drainage

Stilosol features gutters and downpipes to effectively manage rainwater runoff.

Optional Flashing

We offer an optional fascia which covers the purlins and fixings for a minimalist look.

LED Lighting

Choose energy-efficient LED lighting to improve usability and safety, especially at night.

Extended Clearance Height

If you need more clearance than the standard 2.3m, just let us know and we'll adjust the carport design to suit.

Nexus Roof

Nexus, or Blueroof, is a unique roof system offered only by Bluetop, which provides waterproofing without the need for a box profile roof. This saves on materials and means the solar panels are visible from under the canopy.

Wide Range of Colours

Stilosol can be powdercoated in a wide range of RAL colours to match your branding. Get in touch for a full colour chart.

Up to 16m wide

Stilosol Plus

Our Stilosol Plus is designed for the next level of solar generation - with a roof width expanding up to 16m, providing more space for solar panels and enabling large areas to be covered more cost-effectively.

Available in all the same roof configurations as the Stilosol, Stilosol Plus offers ultimate flexibility for your site.

Materials

Our carports are manufactured from European-made steel in Poland.

Posts and rafters: Hot Galvanized according to EN – 1461

Beams and rails: Zinc-magnesium coated in accordance to DIN 55928-8

Structural Standards

Gradasol carports are accredited to all the following Eurocode standards:

EN 1990 Eurocode 0: Basis of structural design
EN 1991-1-3 Eurocode 1: Action on structures – Part 1-3: Snow loads
EN 1991-1-4 Eurocode 1: Action on structures – Part 1-4: Wind actions
EN 1991-1-7 Eurocode 1: General actions – Part 1-7: Accidental actions
EN 1993-1-1 Eurocode 3: Design of steel structures – Part 1-1: General rules and rules for buildings
EN 1993-1-3 Eurocode 3: Design of steel structures – Part 1-3: General rules
EN 1993-1-5 Eurocode 3: Design of steel structures – Part 1-5: Plated structural elements

Roof Options

We offer one of three roofing options for our Stilosol and Stilosol Plus carports.

Nexus: this unique roof design frames the solar panel modules with aluminium profiles with built-in channels, which capture water runoff but also enable the panels to be visible from the underside. This allows bifacial solar panels to be used to maximise energy generation.
With Subroof: Trapezoidal profiled steel roof sheets are installed under the solar panels to ensure complete waterproofing
Without Subroof: The solar panels are installed directly onto the frame's purlins. No additional waterproofing is provided - this is the most cost-effective option.

Zinc-magnesium coated steel gutters and downpipes are concealed within the steel frame and are provided as standard.

Optional Additions

Stilosol carports can be accessorised with any of the following options:

Lighting: TRACY® LED Lighting which offers energy-efficient safe lighting designed for outdoor use
Optional extended clearance height: While our standard clearance height of 2.3m is sufficient for cars and small vans, we can also increase the clearance height to accommodate larger vehicles like large vans, buses or trucks as needed.
Bespoke Colour: Stilosol and Stilosol Plus can be powdercoated in a RAL colour of your choice to match branding.

Structural Standards

We recognise that every site is different, and that not traditional concrete foundations won't work for everyone.

Stilosol carports can be installed with several different foundation types, including:

Concrete pads
Screw pile foundations
Rammed pile foundations

We will check site conditions as part of our survey and can advise you which foundation type is best.

Span	4.6m - 8.1mm
Depth	5.1m-6m
Clearance Height	2.3m
Roof Tilt	10°
Orientation	South/North

Span	4.6m - 8.1m
Depth	10.2m - 12m
Clearance Height	2.3m
Roof Tilt	10°
Orientation	South/North

Span	4.6m - 8.1m
Depth	10.2m - 12m
Clearance Height	2.3m
Roof tilt	10°
Orientation	East/West

Span	4.6m - 8.1m
Depth	10.2m - 12m
Clearance Height	2.3m
Roof tilt	5°/12°
Orientation	South/North

Stilosol

Benefits of our Stilosol Carports

Cost-Effective Design

Single Support

European-Made

Integrated Waterproofing

Product Features

Drainage

Optional Flashing

LED Lighting

Extended Clearance Height

Nexus Roof

Wide Range of Colours

Stilosol Product Specifications

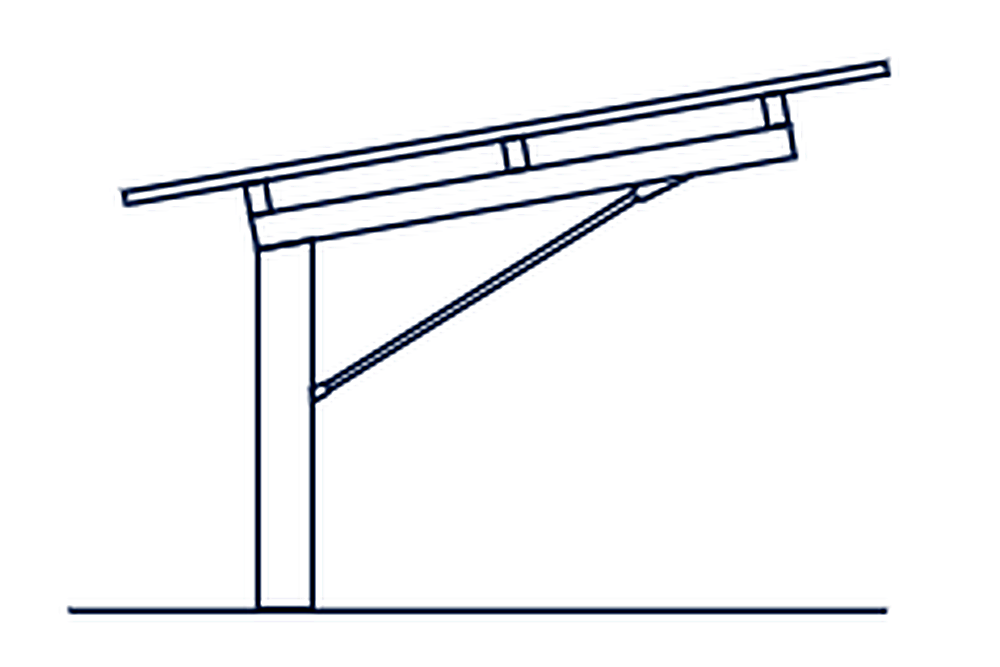

Type 1

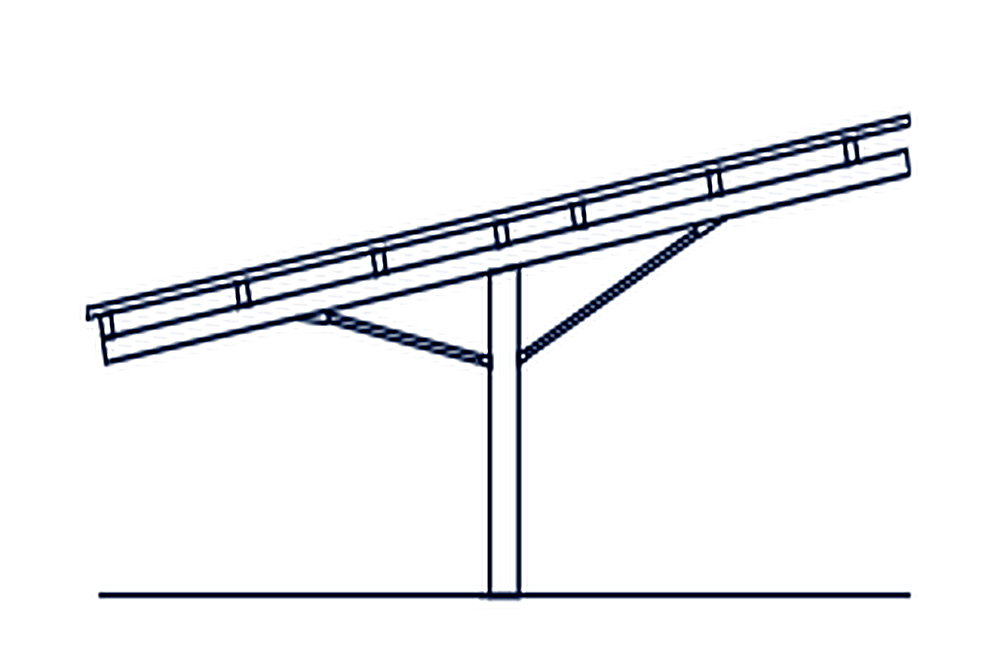

Type 2

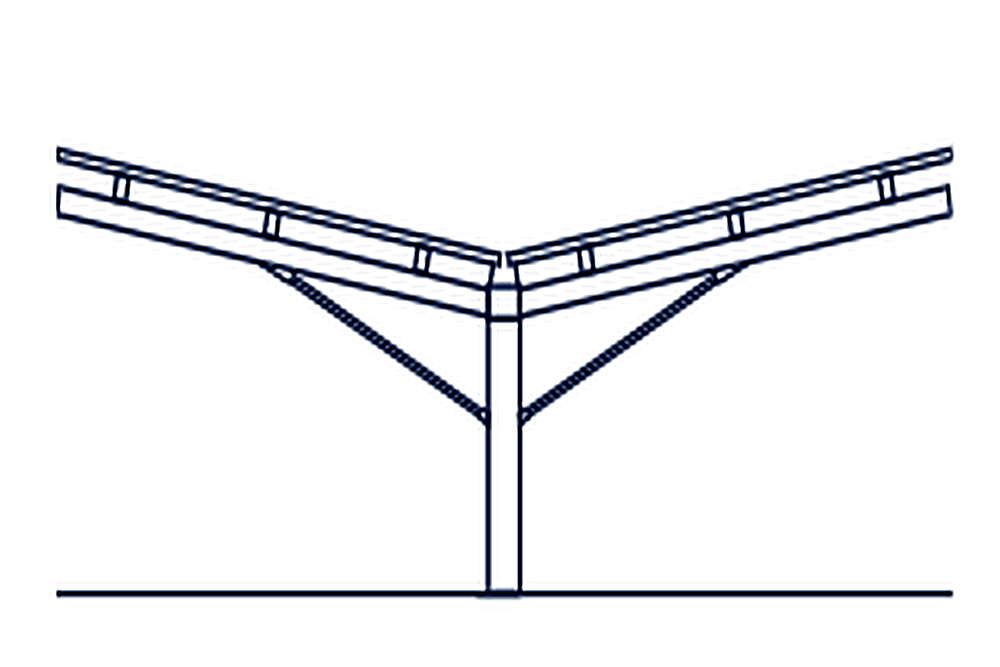

Type 3

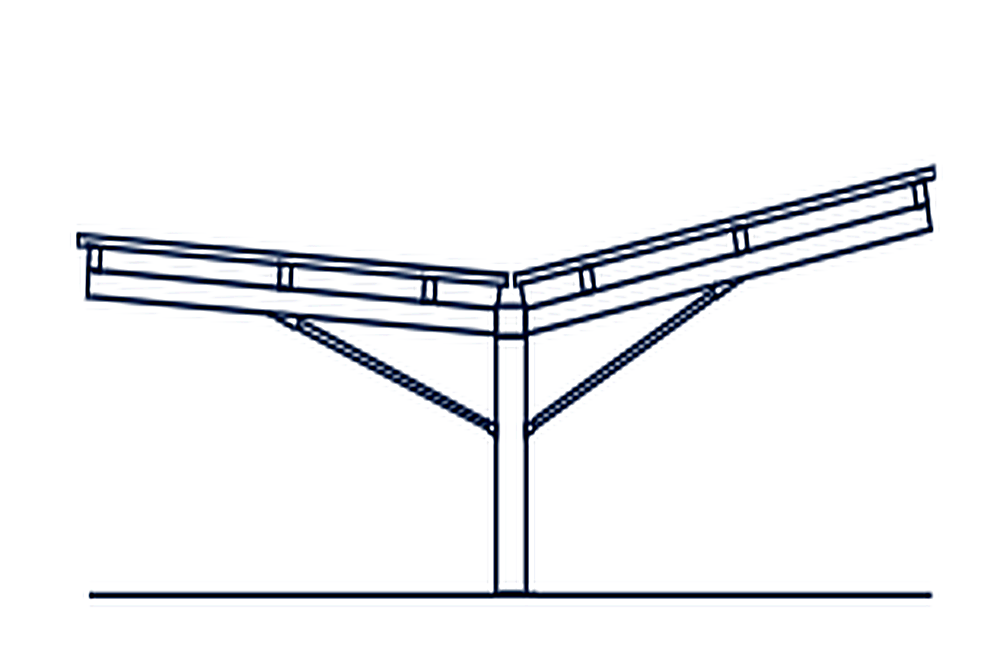

Type 4
